An aeronautical chart is the road map for a pilot flying under VFR. The chart provides information that allows pilots to track their position and provides available information that enhances safety. The three aeronautical charts used by VFR pilots are:
FIND Aeronautical data FAST click here ( ICAO ArcGIS Online for ORGANIZATION ). Gallery 160 Interactives Online Maps; Type in the Search for what you are looking for! ICAO FIR Part Example in many formats, download the Zip files. Big anime tits tits. That Map is showing the evolution of the Coronavirus across the World via the Traffic. An aeronautical chart is the road map for a pilot flying under VFR. The chart provides information that allows pilots to track their position and provides available information that enhances safety. The three aeronautical charts used by VFR pilots are: Sectional VFR Terminal Area World Aeronautical A free catalog listing aeronautical charts.
- Sectional
- VFR Terminal Area
- World Aeronautical
A free catalog listing aeronautical charts and related publications including prices and instructions for ordering is available at the Aeronautical Navigation Products website: www.aeronav.faa.gov.
Sectional Charts
Sectional charts are the most common charts used by pilots today. The charts have a scale of 1:500,000 (1 inch = 6.86 nautical miles (NM) or approximately 8 statute miles (SM)), which allows for more detailed information to be included on the chart.
The charts provide an abundance of information, including airport data, navigational aids, airspace, and topography. Figure 16-1 is an excerpt from the legend of a sectional chart. By referring to the chart legend, a pilot can interpret most of the information on the chart. A pilot should also check the chart for other legend information, which includes air traffic control (ATC) frequencies and information on airspace. These charts are revised semiannually except for some areas outside the conterminous United States where they are revised annually.

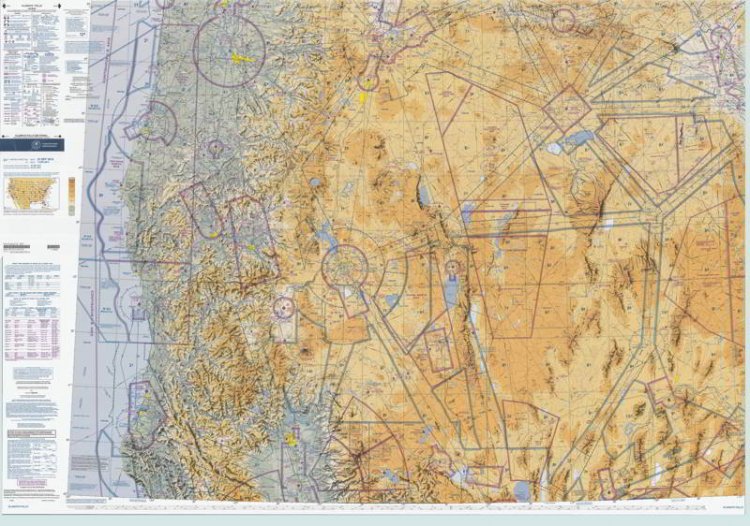

Figure 16-1. Sectional chart and legend. [click image to enlarge]
VFR Terminal Area Charts
VFR terminal area charts are helpful when flying in or near Class B airspace. They have a scale of 1:250,000 (1 inch = 3.43 NM or approximately 4 SM). These charts provide a more detailed display of topographical information and are revised semiannually, except for several Alaskan and Caribbean charts. [Figure 16-2]
Figure 16-2. VFR Terminal Area Chart and legend. [click image to enlarge]
World Aeronautical Charts
World aeronautical charts are designed to provide a standard series of aeronautical charts, covering land areas of the world, at a size and scale convenient for navigation by moderate speed aircraft. They are produced at a scale of 1:1,000,000 (1 inch = 13.7 NM or approximately 16 SM). These charts are similar to sectional charts, and the symbols are the same except there is less detail due to the smaller scale. [Figure 16-3] These charts are revised annually except several Alaskan charts and the Mexican/Caribbean charts, which are revised every 2 years.
Adobe illustrator cc 2014 for mac. So once again the tedium falls to user to bring over items such as Variable Width Line presets and Actions. And finally, control handles no longer snap to grid, offering you much more freedom when you must work with grid-based workflows.The Pen tool’s new preview feature shows you the shape of the next line segment before you drop the point.What was left outOne thing that struck me as odd was that Illustrator CC 2014 did not import presets from Illustrator CC, whereas Photoshop CC 2014 offers to import presets from Photoshop CC. It was refreshing to see this respect for continuity finally added to Photoshop, and Adobe would do well to add it Illustrator as well.However, it’s worth noting that neither application inherits the workspace layout or preferences of its predecessor. Upon installing Illustrator CC 2014, I was required to rearrange panels and reconfigure settings to match my preferred workspace in Illustrator CC. Given that Adobe allows you to sync many settings via the Creative Cloud, it was disappointing that these were ignored upon the launch of the new app (which is of course tied to the same Adobe ID).Other minor issues persist.
Figure 16-3. World aeronautical chart. [click image to enlarge]
